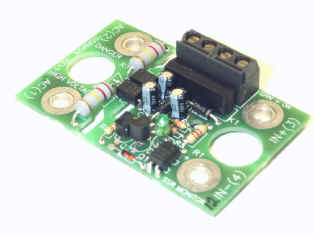

APCSSRMON Users Manual


1 Ordering Code (Figure 1)

The following is the ordering code for the Anacon Solid State Relay Monitor series.


For example:  A 240 Volt Line Voltage type with a 5-15V input, 12V power Supply and Continuous mode would be ordered as follows:
APCSSRMON-C-12.

Top of Page

2 Installation


Top of Page


2.1 Mounting Instructions
The APCSSRMON is designed to mount in a "piggy back" configuration on any standard footprint Solid State Relay module.  The unit should be used with the Anacon touch-safe cover to minimize electrical shock hazards.

Top of Page


2.2 Wiring Instructions
The input and output terminals of the SSR should be wired with the board installed, but as if the board is not present.  In high current applications (over 40A) we recommend wiring the connection lugs under the APCSSRMON Printed Circuit Board Bushings.

All I/O on the APCSSRMON is available with screw terminal connectors for ease of harness assembly.  The screw connectors can accept up to 14 AWG wire.

The power, alarm, and ground wires are wired to the screw terminal block.  In the case of the interrupted input version, the control input is wired to the screw terminal connector located at the top left hand corner of the board.

The AC Load Side and Signal connections should be wired as shown in Figure 2.  It is good practice to keep the AC Load Side wires away from the Control and Alarm wires to prevent any power line noise from coupling into them.

Top of Page

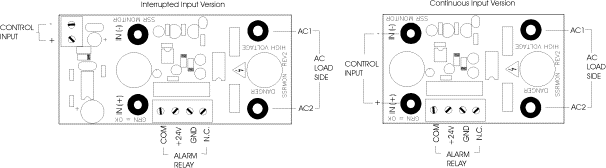

2.3 Wiring Diagram (Figure 2)


Top of Page

3 Operation


Top of Page


3.1 APCSSRMON Input
The APCSSRMON control input is optically isolated from both the AC output and the DC power supply.  The control input has nominal input impedance of ~4kW.  The input impedances on the Interrupted input version are typically about one half of the Continuous version, thus requiring more drive current.

Top of Page


3.2 Continuous Input Version Applications
The Continuous input version of the APCSSRMON can only detect a failure condition when the control input signal of the Solid State Relay and APCSSRMON become logic low.  The control input is required to remain logic low for a least 100mS before the failure will be detected.

Top of Page


3.2.1 Time Proportioned Controlled Processes
The Continuous input version will perform well in the majority of applications where the SSR control input is being cycled periodically (time proportioned P, PI, PD, PID).

We recommend that the process controller or other device used to drive the APCSSRMON be setup to have a periodic off time of at least 100mS.  This can usually be accomplished via an output percentage limit function in the temperature or process control.  For example:  if the cycle time on the process controller is set to 10 seconds and the output limit is set to 99%, then the output will cycle off for 100mS every 10 seconds even if the controller output is on "full".  As another option, some PLCs may also be programmed to periodically interrupt the SSR control signal.

Top of Page


3.2.2 On-Off Controlled Process
The Continuous input version may be used in on-off control applications.  The trade-off is that no alarm can be detected until the process controller or other device driving the Solid State Relay and APCSSRMON turns its control output off.  In most cases, if the Solid State Relay becomes shorted this will force the process value to the required setpoint causing the control output to turn off.

Top of Page


3.3 Interrupted Input Version Applications
We recommend the Interrupted input version for on-off control and switched applications where the control input to the SSR and APCSSRMON may not be cycled regularly.  The interrupted input version of the APCSSRMON forces the SSR control input off for a brief period 100mS-150mS approximately every 10 seconds.  This results in a duty cycle of about 99%.  In most processes, a forced brief off period (~100mS) of the load is negligible (such as in an on-off temperature control application).  The Performance on the control of heaters is negligible; it is approximately equivalent to having a 0.5% change in line voltage, which happens frequently everywhere.

Top of Page


3.4 Alarm Output
The alarm output of the APCSSRMON is a low voltage/current relay contact. Single Relay Contact 200 VDC/0.5 A max. Relay contacts open upon fault or loss of board power. Relay contacts are closed when no faults are present. The alarm output may be used to drive low voltage relay coils, indicators, audible alarms, PLCs, etc. The required output current should not exceed 0.5 Amps. If multiple APCSSRMONs are needed in a given installation such as in a polyphase application, the output relay contacts may be wired in series to "OR" the alarms into one signal. The APCSSRMONs output relays may also be wired in series with other devices normally closed alarm relays.

Top of Page


3.5 Fault Conditions
The APCSSRMON can detect a loss of load/line power, loss of DC power supply, a loss of load, and a shorted solid state relay. The APCSSRMON can detect either half wave or full wave shorted failure conditions of the SSR.

Top of Page


3.5.1 Continuous Input Fault Detection

Failure Condition
When Detected
Shorted SSR
After Control Input remains logic low for 100mS or more, i.e.
when an attempt is made to turn the SSR off
Open Load
After Control Input remains logic low for 100mS or more, i.e.
when an attempt is made to turn the SSR off
Load or Line Power Loss
After Control Input remains logic low for 100mS or more, i.e.
when an attempt is made to turn the SSR off
DC Power Supply Loss
Anytime - Independent of Control Input

Top of Page


3.5.2 Interrupted Input Fault Detection

Failure Condition
When Detected
Shorted SSR
Anytime - Independent of Control Input (forced off period)
Open Load
Anytime - Independent of Control Input (forced off period)
Load or Line Power Loss
Anytime - Independent of Control Input (forced off period)
DC Power Supply Loss
Anytime - Independent of Control Input

Top of Page


3.6 Input / Output Logic
Once a fault condition is detected, i.e. loss of load/line power, loss of load, or a shorted solid state relay, the relay contacts are opened and held open until the fault condition is corrected and the control input of the APCSSRMON is toggled or DC power is removed and applied again. For further details, see the status diagram in figure 3.

Top of Page

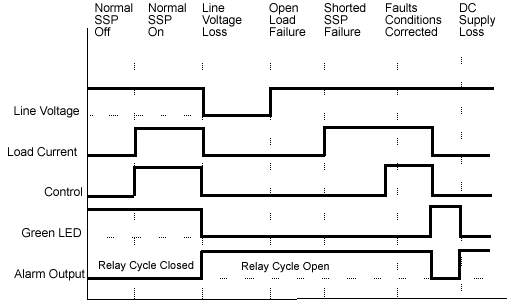

3.7 Status Diagram (Figure 3)


Top of Page


4 Electrical Specifications
Monitoring Modes
Monitors SSR Output and Input for shorted SSR output, loss of line voltage, loss of load, short external to SSR, loss of DC power.
Power / Status Indication
Green LED energized when power is applied and normal operating conditions are present, i.e. status OK.
Power Supply
10-14 VDC (12VDC) or 20 to 32 VDC (24VDC), less than 1.5 Watts power consumption.
Input Mode
Interrupted:  Input to SSR and APCSSRMON is forced off for ~ 150-100mS every 10 seconds to test SSR VO logic.  Continuous:  Input to SSR and APCSSRMON is based on drive signal.
Control Input Impedance
~4 KΩ
Control Voltage
Continuous:  5-32 VDC.  Interrupt:  5-15 VDC.
Alarm Output
Single Relay Contact 200 VDC / 0.5 A max.  Contacts open upon fault or loss of board power.  Contacts are closed when no faults are present.
Alarm Response Time
Typically less than 50 mS from the last control input cycle.  Up to 10 seconds on Interrupted Input version with control input on 100%.
AC Line Voltage
100-660 VAC 50 / 60 Hz.
Input / Output Isolation
4000 Vrms (25°C for 1 second).
Off State Leakage Current
6mA rms max across SSR output.
Off State Blocking Voltage
1200 Vpk (max 1 minute duration).
Operating Temp. Range
0 to 60°C

Top of Page

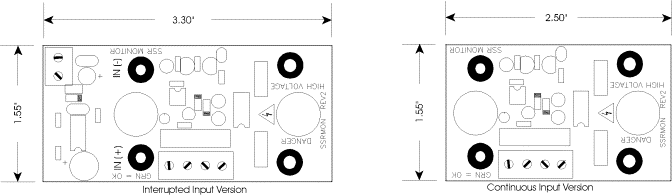

5 Mechanical Dimensions
