"Touch Safe" versions of Anacon's SCR Power Controllers are available in either our DIN Mount or Panel Mount models. You can be sure that you are getting the very latest in agency compliance when you choose Anacon for your SCR Controller needs.

Standard features:

• Provides true linear power output phase angle control
• Command input accepts 4-20mA, 0-10V, 0-5V, 0-135 O , Pot, PWM
• Configurable line voltage compensation increases stability of your process
• Configurable soft start for high inrush loads
• Automatic 50/60Hz operation
• Adjustable Voltage Limit (-VL) Option
• Drives multiple solid state relays
• Single phase and three phase control

The Touch Safe version can be ordered by adding the letter "T" after the rating number in the standard part number. For example, APCSCR40HL would be APCSCR40THL for the Touch Safe version.

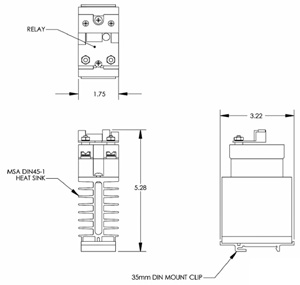

DIN Mount

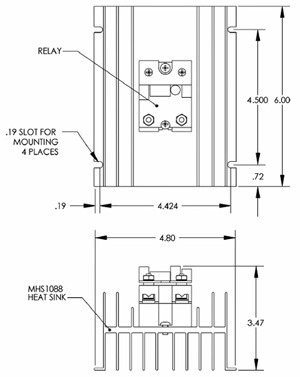

PANEL Mount
