4-20mA Loop Powered Time Proportioning Module

The APCMAN-1LP is designed for use in a broad range of 4 to 20mA power control applications where an external power supply is not available.  The APCMAN-1LP mounts directly on the input connections of a Solid State Relay (SSR) and provides precise 0-100% time proportioned drive based on the input signal.

Standard Features:
  • Provides precise time proportioned 0-100% output
  • Loop powered - no external power supply required
  • 4-20mA command signal input
  • Drops only 6.3 Volts of total loop voltage
  • Drives multiple Solid State Relays (SSRs)
  • Single phase and three phase control
  • Installs in seconds - mounts on SSR input terminals
  • LED output indicator
  • Limited Two Year Warranty

SPECIFICATIONS
PART NUMBER COMMAND INPUT CONTROL OUTPUT CYCLE TIME OUTPUT
LINEARITY
APCMAN-1LP 4-20mA

  • Provides 0-100% time proportioning based on command signal input

  • 14mA / 4.2V drive

  • Control output is short protected, direct acting

  • 350mS at 50% output

  • Cycle time greater at ends for optimal output resolution

+/-2% of Full Scale
(+/-1% with -ZS)

See User Manual for
ZS Options.

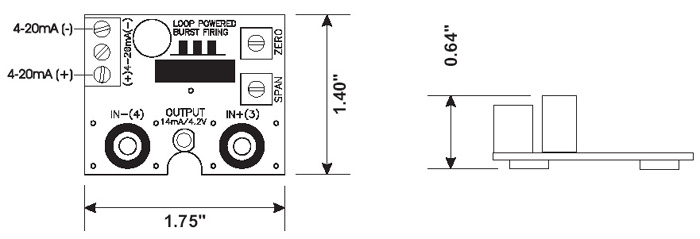

Dimensions
