3 Phase 2 Leg Break
50A/Leg
"COOL ONE" Dual Panel Mount Solid State Relay Assemblies
Anacon's "Cool One" heat sink design is by far one of the most unique ideas to come along in quite some time. Read about its amazing features and how Anacon can help with your design regardless of whose Solid State Relays you're using. "Cool One" works better! |
| |
Panel Mount
 |
DIN Mount
For DIN Mount version add suffix "DD" to part number. (Example APC4130DD)
|
Standard Cool One Features:
|
SPECIFICATIONS
|
| PART NUMBER IP00 |
PART NUMBER IP20 |
INPUT
RANGE |
LOAD CURRENT |
LINE
VOLTAGE |
TRANSIENT VOLTAGE |
| APC4030DP |
APC7030DP |
3-32Vdc |
.1A-50A/Leg @40 Degrees C Ambient |
24-280Vac |
600V Peak |
| APC4031DP |
APC7031DP |
90-280Vac |
.1A-50A/Leg @40 Degrees C Ambient |
24-280Vac |
600V Peak |
| APC4032DP |
APC7032DP |
18-36Vac |
.1A-50A/Leg @40 Degrees C Ambient |
24-280Vac |
600V Peak |
| APC4130DP |
APC7130DP |
3-32Vdc |
.1A-50A/Leg @40 Degrees C Ambient |
48-660Vac |
1200V Peak |
| APC4131DP |
APC7131DP |
90-280Vac |
.1A-50A/Leg @40 Degrees C Ambient |
48-660Vac |
1200V Peak |
| APC4132DP |
APC7132DP |
18-36Vac |
.1A-50A/Leg @40 Degrees C Ambient |
48-660Vac |
1200V Peak |
|
Din Mount Versions available by changing DP suffix to DD. |
|
Notes:
- Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
- Ratings are based upon relays being mounted either individually or side by side with zero spacing.
- Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.
|

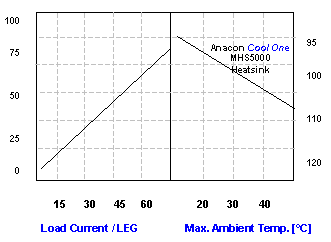

THERMAL CURVE
|
