30 AMP/Leg Rated

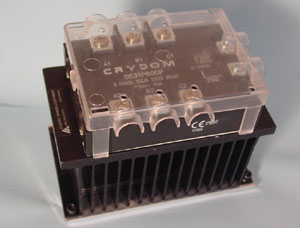

"COOL ONE"  DIN Mount 30A/Leg 3 Phase Solid State Relay Assembly

Anacon's "Cool One" heat sink designs provide a thermally optimized DIN mounting platform for today's high performance solid state relays.  The listings below provide the actual load currents that each part type will support.  If you're not sure about how to select the correct product for your application, call Anacon, toll free and discuss your application with us.  (800-466-9080)


Assembly Dimensions:
5.2" x 3.0" x 4.25"
Standard Cool One Features:
  • Current Ratings from 0.1A to 30A/Leg
  • Zero Cross Relays
  • Output voltages from 48Vac to 530Vac
  • Standard DC or AC Control Versions
  • Standard LED Status Indicator
  • Regulated Inputs- Back to Back SCR Design
  • Standard Relays, UL/cUL Recognized, TUV Approved & CE Compliant Version
  • 135mm DIN Relay w/Removable Touch Safe Cover Includes:
    Safety Cover, Relay, Heat Sink & DIN Clip

SPECIFICATIONS
PART NUMBER INPUT RANGE LOAD CURRENT LINE VOLTAGE TRANSIENT VOLTAGE RELAY
TYPE
APC2013

3-32Vdc

 .1A-30A/Leg @ 40C Ambient 48-530Vac 1200V Peak Zero Cross
APC2013-1

90-280Vac

 .1A-30A/Leg @ 40C Ambient 48-530Vac 1200V Peak Zero Cross
Notes:
  • Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
  • Ratings are based upon relays being mounted either individually or side by side with zero spacing.
  • Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.

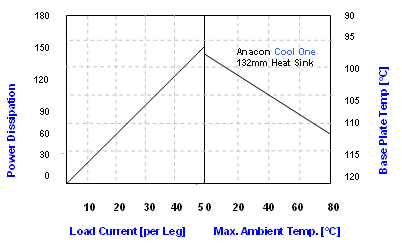

THERMAL CURVE
